(Platinum Rhodium -13% / Platinum) : The Type R is
used in very high temperature applications. It has a higher
percentage of Rhodium than the Type S, which makes it more
expensive. The Type R is very similar to the Type S in terms of
performance. It is sometimes used in lower temperature applications
because of its high accuracy and stability. Type R has a slightly
higher output and improved stability over the type S.
Accuracy (whichever is greater) :
Standard: +/- 1.5C or +/- .25%
Special Limits of Error: +/- 0.6C or 0.1%
Technical Details :
Type: R
Protection TUBES: Ceramic RECRYSTALISED, 310 SS
ELEMENTS: Simplex / Duplex / Multipoints
(Platinum Rhodium – 30% / Platinum Rhodium – 6%):
The Type B thermocouple is used in extremely high temperature
applications. It has the highest temperature limit of all of the
thermocouples listed above. It maintains a high level of accuracy
and stability at very high temperatures. The type B has a lower
output than the other noble metals (type R & type S) at temperatures
below 1,112F (600C).
Accuracy (whichever is greater) :
Standard: +/- 0.5%
Special Limits of Error: +/- 0.6C or 0.1%
Special Limits of Error: +/- 0.25%
Technical Details :
Type: B
Protection TUBES: Ceramic RECRYSTALISED, 310 SS
ELEMENTS: Simplex / Duplex / Multipoints

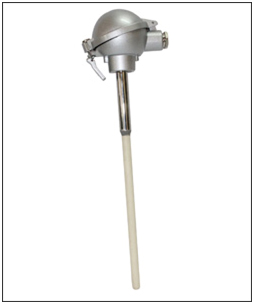

Type S Thermocouple (Platinum Rhodium - 10% /
Platinum): The Type S is used in very high temperature
applications. It is commonly found in the BioTech and
Pharmaceutical industries. It is sometimes used in lower
temperature applications because of its high accuracy and
stability. The type S is often used with a ceramic protection
tube.
Accuracy (whichever is greater) :
Standard: +/- 1.5C or +/- .25%
Special Limits of Error: +/- 0.6C or 0.1%
Technical Details :
Type: S
Protection TUBES: Ceramic RECRYSTALISED, 310 SS
ELEMENTS: Simplex / Duplex / Multipoints
Note : With Test Certificate
Platinum
Crucible
Platinum Crucile are made from
platinum and platinum alloyed with rhodium/iridium or even gold
as per customer requiremetns. These are made to obtain maximum
service life hen used under normal condition so that most
laboratory requirements can be met.
Our organization is manufacturing, supplying and
exportingjigh quality Platinum Crucible & Platinum Disehs. All
These products are demanded for melting, analyzing and calcining
different materials at high temperatures. The offered platinum
crucibles are developed using extra thick base can easily resist
heavy wear. Our range is provided with lid.
We design and manufacture these products to meet
different laboratory requirements. Our used material is well
sourced from the reliable market vendorsa after a keen market
research. Before final dispatch, our quality controllers inspect
the range of Platinum Crucible on quality prameters.
Our product range also comprises of Digital
Measuring Instruments, Scientific & Laboratory Instruments and
Water Testing Instrumetns.
These crucibles, a range inended for furance
ignitions, are considerably broader and more stable than
ordinary crucibles of equal capacity. All members of the range
are exactly similar in shapre and proporties, with dimensions
that conform to simple rations. Norminal capacities are from 10
ml to 70 ml
The dimensions of "UA" crucibles conform to the
following relationshops : E=3A, C=0.83A, D=0.61A
