1. THERMOCOUPLE BARE WIRES
a) Platinum / Platinum 10% & 13% Rhodium
available in 22, 24, 25, 26, 27.5 & 30 SWG
b) We Buy / Seller of Platinum / Platinum Rhodium Wires In Any
Form
c) Chromel / Alumel ( Ni-Cr-Ni ). Fe / Constantan, Copper /
Constantan & Chromel / Copel in different gauge ( From 8 SWG. to 34, SWG ) |
Kanthal, Nichrome, Eureka, Tungsten, Manganese Wires / Strips for Temp.
Upto 1200 °C to 1375
°C
Spiral type heating coils for ELECTRIC FURNACES.
Inconel
600 / 800 quality Pipe / Rod / Sheet / Wire available.
Titanium Pipe / Rod / Sheet / Wire available.
Monel
Metal Pipe / Rod / Sheet / Wire available.
Hastalloy Pipe / Rod / Sheet / Wire available.
 |
Thermocouple with protecting sheath in S. S. 304 /
310 / 316 quality & Inconel 600 sheathing having outer dia .5 mm to 10
mm Length 100 Mtr. to 300 Mtr. in single length. Hot Junction grounded
OR ungrounded as per specification.

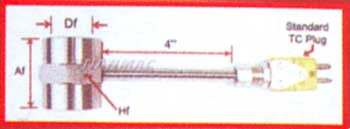

Also Available :- Mineral Insulated Compensating Extension Cable with
Copper Sheathing for Pt / Pt / Rh Thermocouple
( This cable can be used
for Immersion Lance )
( Molten Materials ). |
Inconel 600 & 800 Quality in
all Dia., Also °C. an be supplied flexible type neoprene rubber /
Insulated extension cable.
Thermocouple Probes (Type 'K' Thermocouple)
Immersion - Leaf Prick - Bow-Gas for Low & High Temp.
THERMOCOUPLE & SPARES
 |
1. THERMOCOUPLE BARE WIRES
a) Platinum / Platinum 10% & 13% Rhodium
available in 22, 24, 25, 26, 27.5 & 30 SWG
b) We Buy / Seller of Platinum / Platinum Rhodium Wires In Any
Form
c) Chromel / Alumel ( Ni-Cr-Ni ). Fe / Constantans, Copper /
Constantans & Chromel / Copel in different gauge ( From 8 SWG. to 34, SWG )
|
 |
2. Ceramic Insulators (Beads)
Single Bore, Two Bore, three Bore & Four Bore insulators in High
Alumina & Silica Materials in Round and Oval Shapes Porcelain
beads with and without interlocking type 610 & 710 Quality
Insulators also available. Note : Above Ceramic
Insulators available in single length up 1500 mm having
1 to 15 mm outer dia. For Temp. upto 1600 °C to 1800 °C |
2. THERMOCOUPLE SHEATH
High Alumina Silliminite impervious thermocouple protection sheath [One
end closed ]. Type - 610 for use upto 1650 °C. Inconel Sheath.
Heat Resistant Stainless Steel Sheath of 304, 310 & 316 qualities in
different dimension and lengths 710 Quality Recrystallized Sheath Temp.
Upto 1800 °C. Temp upto 2100 °C. , Tube also available.
MANUFACTURER OF THERMOCOUPLES / THERMOWELL
 |
All Types of Thermocouples such as Platinum /
Platinum - Rhodium 10% & 13 % Chromel / Alumel, Copper / Constantan & Fe
/ Constantan Straight type, Angle ( Bend ) & Flexible type with
different types of Sheathings such as Heat Resistant Stainless Steel
Inconel, High Alumina Refractory etc. having excellent thermal shock
Resistance for use upto 1650 °C.
Complete with Cast Aluminium Thermocouple head, brass parts Porcelain
block and adjustable flange etc. |

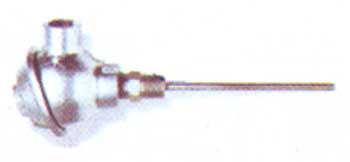

THERMOCOUPLE HEAD (AS PER "OMEGA" USA DRAWING
Cast Aluminium Thermocouple head complete with porcelain round block
heat resistant paint, available in different sizes & shapes.
SPARES :
PLATINUM RESISTANCE ELEMENTS (RTD) & FULL ASSEMBLY
Round Shape size available : 0.7 mm / 0.9 mm / 1.2 mm /1.6 mm / 3 mm / 5
mm / Simplex / Duplex Type RTD Element, Thermal Ribbon RTD
Flat (Slot) Shape PT-100 RTD, Size available : 2 x
10 mm / 2 x 2 mm / 2 x 5 mm Simplex. Film Type PT -100 and many other
sizes available Ex - stock
Single / Duplex Elements (Probe / Bulb) in ceramic
body 100 ohms at 0 °C Sizes : Dia 3 mm and 5 mm, 32 mm long for
temperature measurement in the range 220 °C to +850 °C : Degussa /
Harious " German make ( as per DIN 43760)
