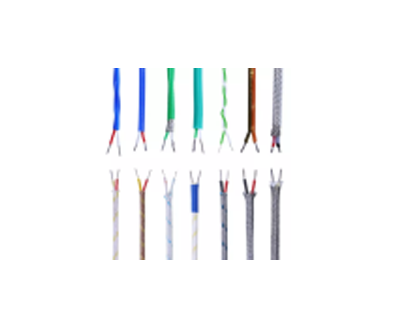

Thermocouple & RTD Cables
High Temperature thermocouple cables, extension cables and compensating cables for thermocouples and RTDs. Multiple braidings, types and the perfect combinations for your application. Choose from thousands of combinations or customize one.
• Chart to understand cable Types, their tolerances and curresponding Temperature ranges:
Braiding Materials used:
| Braiding Material | Abbreviation used |
|---|---|
| Teflon | Tef |
| PVC | PVC |
| Asbestos | ASB |
| Silicone / Silicone Varnish | Si |
| Glass Fibre | FG |
| Stainless Steel | SS |
| Ceramic Glass / Ceramic Glass wool | - |
| Neoprene Rubber | NR |
| Transparent shield (Tefllon) | - |

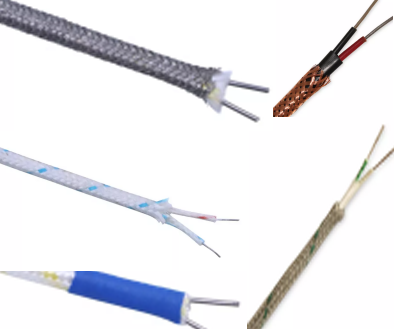

Braiding Combinations:
The user can choose and order any of the followig combinations or customize their set of combinations as per their application and needs.
PVC/PVC || PVC/PVC/ASB || PVC/PVC/FG/Si/ASB || FG/FG/Si || FG/FG/Si/ASB FG/FG/Si/ASB/SS || FG/ASB Twisted || PVC/SS/PVC || Tef/Tef || Tef/FG/SS || Tef/Tef/SS || PVC/NR/SS/NR or customized.
Cores: 2 Core || 4 Core || Multicores || Multistrand || Multistrand Multicores
Braiding Materials used:
| Combination | Suitable operating Temperature |
|---|---|
| Teflon Overbraided Teflon | 260 Degrees celsius |
| Teflon Overbraided PVC | 105 Degrees celsius |
| Teflon Overbraided Teflon Overbraided SS | 260 Degrees celsius |
| Teflon Overbraided Glass Fibre | 400 Degrees celsius |
| Teflon Overbraided Glass Fibre Overbraided SS | 700 Degrees celsius |
| Other Combinations | On request |
